Explosion-proof high-speed frequency conversion disperser

Our Products

Explosion-proof high-speed frequency conversion disperser

Shandong Zibo Debang Company is a standard practical enterprise that developed from producing ‘Wangzhongwang’ paint since 1980s.(the annual production of ‘Wangzhongwang’paint was above 4000ton. It brought the spring up of local paint industry and promote local economic development, and earn ‘King of paint’ title.) Debang is the producer of the first porcelain imitating paint, double-layer non-pressure energy saving glue making machine, developer of porcelain imitating paint recipe generation 1-5, emulsion paint environmental recipe, state grid inner and outer wall emulsion paint project long-term cooperator.(the inner and outer wall emulsion paint project in Yiyang Hunan, Jinmen Hubei, Shijiugang Rizhao, Dingtao Heze, Weishan Jining, Dongjiakou Jiaonan, Kouzhen Laiwu, Daan Zoucheng, Yucheng Dezhou, Chengyang Qingdao and so on, won good reputation by state grid.

Print Product Summary

*Brand:DB
*MOQ:1 pc
*Package:iron frame and wooden case
*lead time:7-10 days

410736474@qq.com

+86-18765185717

Product Details

FAQ

1. Product introduction

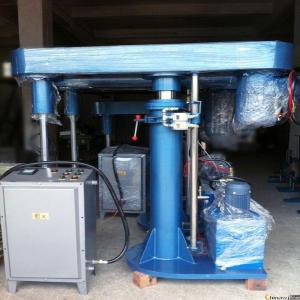

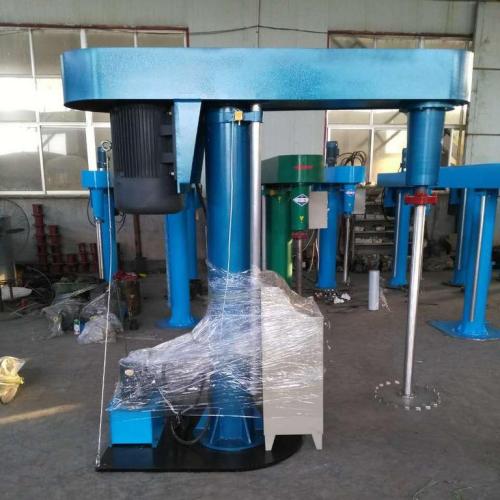

Explosion-proof dispersing machine is mainly used in the production of solvent-based flammable and explosive chemical products such as paint, ink, paint, color paste, floor paint, road marking paint, polyurethane paint, alkyd enamel paint and blending paint. The material is pulverized, dispersed, emulsified and mixed, and the material is subjected to high-speed shearing, impacting, pulverizing and dispersing at a high speed through a new high-efficiency stirring device that disperses the upper and lower teeth of the disc. Refined features. In the feeding zone, the working chamber is sucked from the axial direction at the same time.

The mixing shaft and mixing blade of the explosion-proof dispersing machine are made of imported high-quality 304 stainless steel material. The mixing blade is processed by CNC wire-cutting, the impeller is evenly distributed, the angle is scientifically designed, the dispersion shearing effect is good, and the mixer can be used for a long time in acid and alkali. Use in a humid environment without corrosion or rust.

The explosion-proof disperser adopts explosion-proof motor, and the circuit design is safe and reliable, and can be used in dust, humidity and harsh environment. The motor switch is equipped with a thermal protection device, which can automatically cut off the power when the machine is running abnormally, effectively protecting the motor.

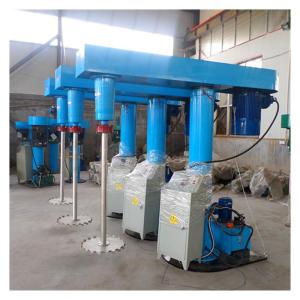

The explosion-proof dispersing machine is divided into mechanical lifting and hydraulic lifting. It consists of mechanical system, hydraulic system, main drive, mixing system, guiding mechanism and electric control box. The parts are compact and reasonable. Dispersion disc type: flat-disk serrated, three-finger paddle, dish, and other forms. The dispersing disc of the dispersing machine is laminar under the dispersing disc, and the slurry layers of different flow rates are mutually diffused to play a dispersion role. The high-speed dispersing machine has various functions such as hydraulic lifting, 360-degree rotation and stepless speed regulation. It can be equipped with 2-4 containers at the same time. The hydraulic lifting stroke of 1000mm and 360 degree rotation function can better meet the multi-purpose of one machine, and can change from one cylinder to another in a short time. The dispersing machine is extremely large. Improves work efficiency and reduces labor intensity.

2. Specifications

Parameter / Model		FL1.5 FL2.2	FL4 FX4	Rack FG250		Rack FG350		Special model rack
Parameter / Model		FL1.5 FL2.2	FL4 FX4	FL5.5/FL7.5 FX5.5/FX7.5	FL11 FX11	FL11 FX11	FL22 FX22	FL45 FX45	FL90 FX90
Monitor rate	kw	2.2	4	5.5or7.5	9/11 or 11	9/11 or 11	18.5/22 or 22	32/42 or 45	90
Dispersed shaft speed	r/min	1200	0~1450 1065/2130	0~1450 1065/2130	0~1450 1065/2130	0~1450 800/1200	800/1450 or 0~1200	800/1450 or 0~1450	1000 or adjustable
Dispersion wheel diameter	mm	φ180~200	φ200~230	φ250	φ250	φ250	φ300~350	φ450	φ600
Lifting stroke	mm	600	800	900	900	1200	1200	1600	1800
Pump power	kw	0.55	0.75	0.75	0.75	1.1	1.1	2.2	2.2
Tank capacity	L	100	200	<600	<800	<1000	<2000	<3000	<5000
Weight	kg	500	500	600	800	1200	1500	2500	4000
Dimensions	A mm B mm C mm width (w) mm	1700 1500 600 580	1700 1500 600 580	1820 1800 700 900	1820 1800 700 900	2200 2200 1100 1200	2200 2200 1100 1200	2800 2700 1400 1400	3400 3000 1600 1500
